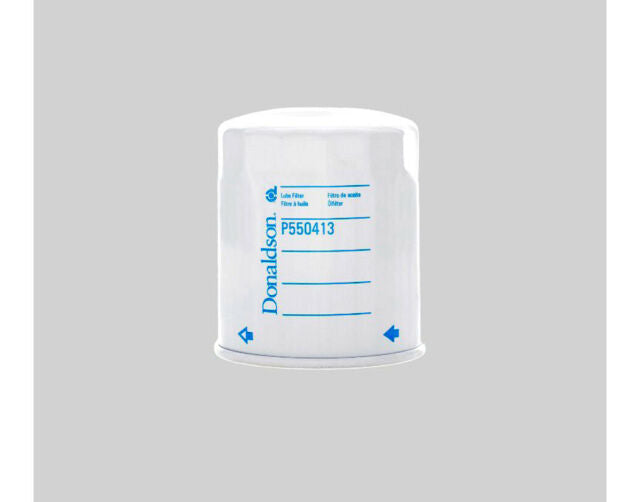

Donaldson Oil Filter Spin-On Full Flow

For:
Toyota Hilux 3.0L 5LE 1KZ-TE 1999-2005 KZN165 LN147 LN167 LN172 S2

Toyota LC Prado J120 2002-06 3.0L 1KZ-TE
Toyota LC Prado J90 2000-02 3.0L 1KZ-TE

Toyota LandCruiser 100 Series 2000-2007 4.2L 1HD-FT 1HD-FTE
Toyota LandCruiser 105 Series 1998-2007 4.2L 1HZ
Toyota LandCruiser J80 Series 1989-97 4.2L 1HD-T 1HD-FT
Toyota LandCruiser J80 Series 1989-90 4.2L 1HZ
Toyota LandCruiser 70 Series 2000-2007 4.2L 1HD-FTE
Toyota LandCruiser 70 Series 1990-2000 4.2L 1HZ

Cross Reference:
Toyota 9091503006, 9091503006899
Baldwin BD7029 / Exxel 1464062
Ford AFL60MC / Fleetguard LF3608
Mann WP92880 / Wix WL7175

Specifications:
Outer Diameter 100mm (3.94 inch)
Thread Size M24 x 1.5
Length 120mm (4.72 inch)
Gasket OD 80mm (3.15 inch)
Gasket ID 67mm (2.64 inch)
Efficiency 95% 4 micron
Efficiency 99% 50 micron
Efficiency Test Std JIS D 1611
Anti-Drainback Valve Yes
Bypass Valve Yes
Bypass Valve Setting LR 1.7 bar (25 psi)
Bypass Valve Setting HR 2.1 bar (30 psi)
Collapse Burst 6 bar (87 psi)
Type Combination
Style Spin-On
Primary Application Toyota 9091503006

Packaged Dimensions:
Gross Length 10.8cm
Gross Width 10.8cm
Gross Height 12.2cm
Gross Weight 0.825kg

Donaldson Lube / Oil Filters
Donaldson filters keep oil clean and engines running at peak performance by capturing contaminants that can cause engine damage. Achieve peak engine and equipment performance with Donaldson's complete line of oil filters for diesel engines - in both standard life and Donaldson Blue. We carry a complete line of oil filters for diesel engines – in both standard life and Donaldson Blue for extended service intervals.
